Capability
| | High precision prototype | PCB bulk production |
| Max Layers | 1-28 layers | 1-14 layers |
| MIN Line width(mil) | 3mil | 4mil |
| MIN Line space(mil) | 3mil | 4mil |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| Board thickness | MAX | 8mm | 7mm |
| MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
| MAX Board size | 610*1200mm | 610*1200mm |
| Max copper thickness | 0.5-6oz | 0.5-6oz |
Immersion Gold/
Gold Plated Thickness | Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u” | |
| Hole copper thick | 25um 1mil | 25um 1mil |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% | Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% |
| Outline Tolerance | ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm | ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm |
| Impedance | ±10% | ±10% |
| MIN Solder mask bridge | 0.08mm | 0.10mm |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm
|
Applications:
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
Tag:
print circuit bord
Single Sided PCB
Double Sided PCB
Rigid PCB Board
Flexible PCB Board
Rigid Flex PCB
LED PCB Boards
Aluminum based circuit board
hdi circuit boards,
Multilayer circuit board
universal pcb board
Product Tags:
|
|

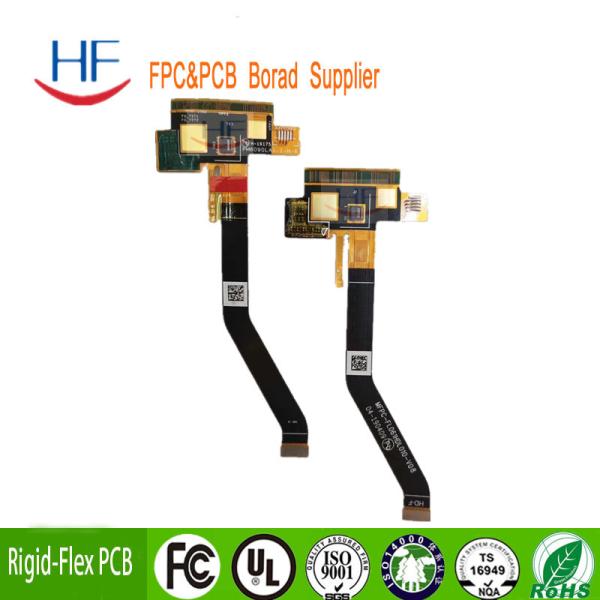

10 Layer Rigid Flexible PCB board Manufacturing And Assembly Images
|
